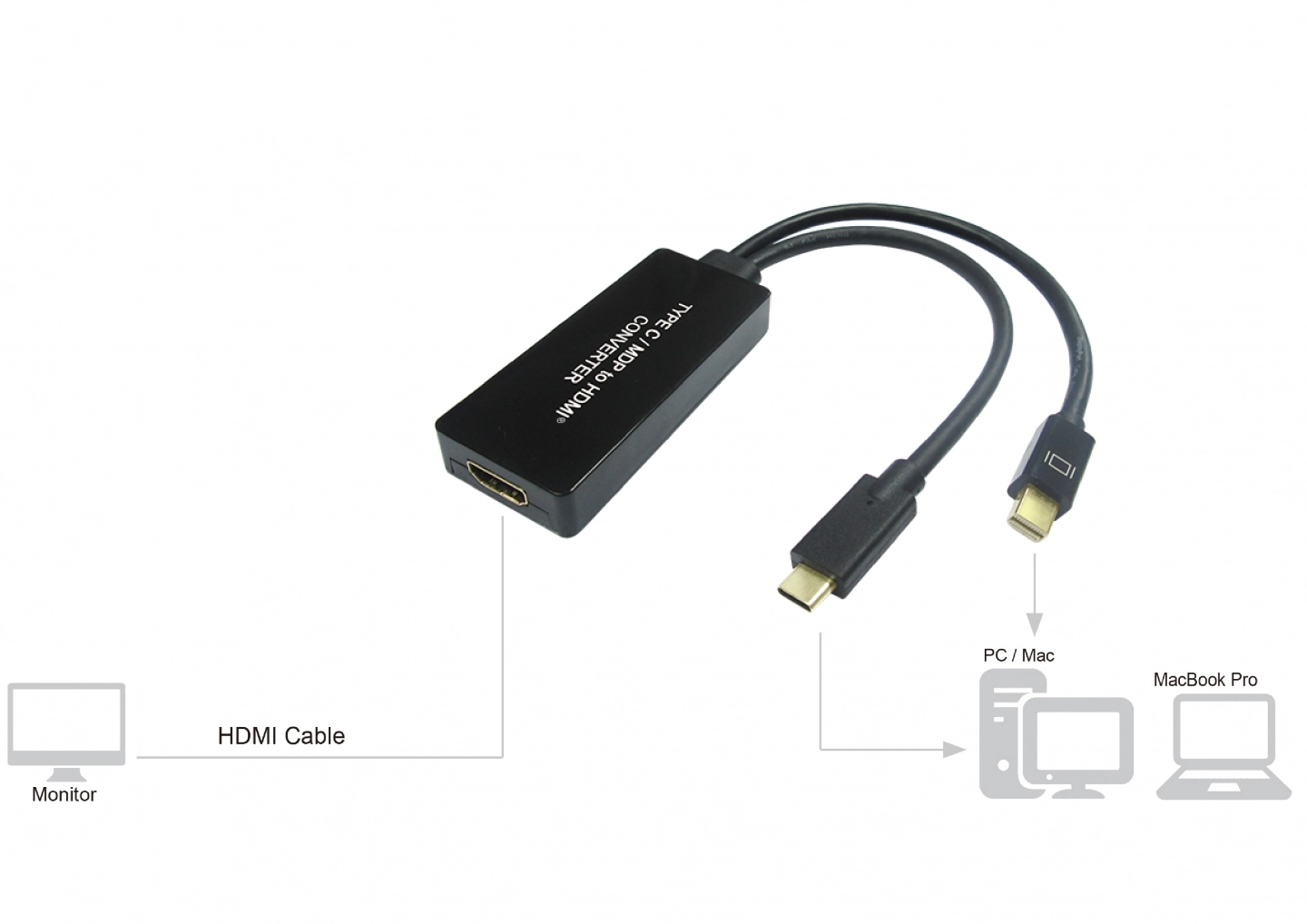

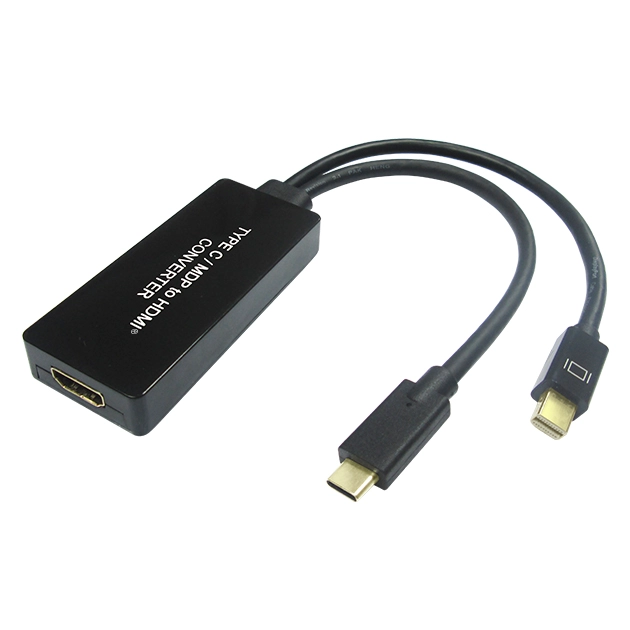

Type C + MDP to HDMI® Converter
CDH-102
Description：
- USB Type C(Male) Reversible Plug.
- Supports Mini DisplayPort Alternate Mode on USB-C Standard.
- Integrates a complete DisplayPort receiver and complete HDMI® transmitter for video format conversion.
- Support DisplayPort 1, 2 and 4 lanes at 1.62Gbps, 2.7Gbps and 5.4Gbps.
- Output compliant with HDMI® 2.0 specification, video resolution up to 4K@60Hz.
- Supports 8-ch LPCM, compressed audio and HBR audio format.
- Supports 24-bit audio sample size and 192KHz audio frame rate.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
