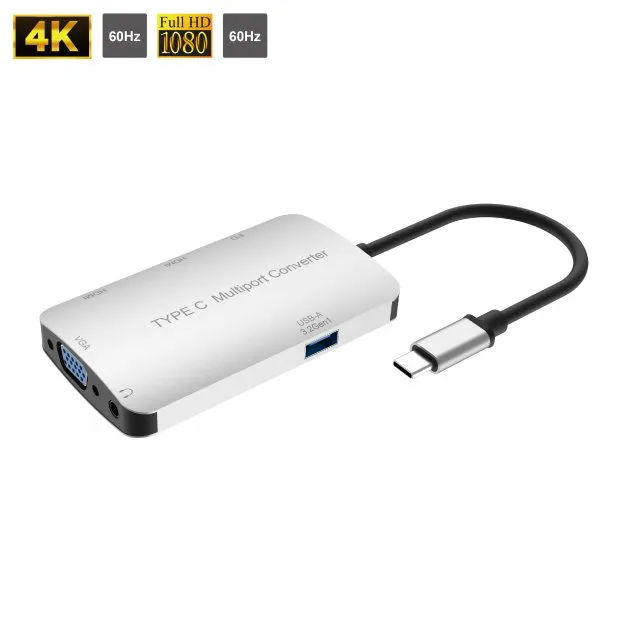

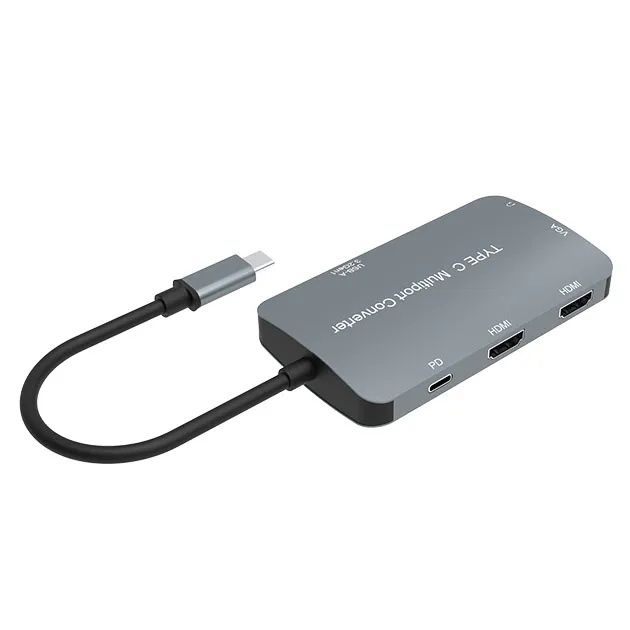

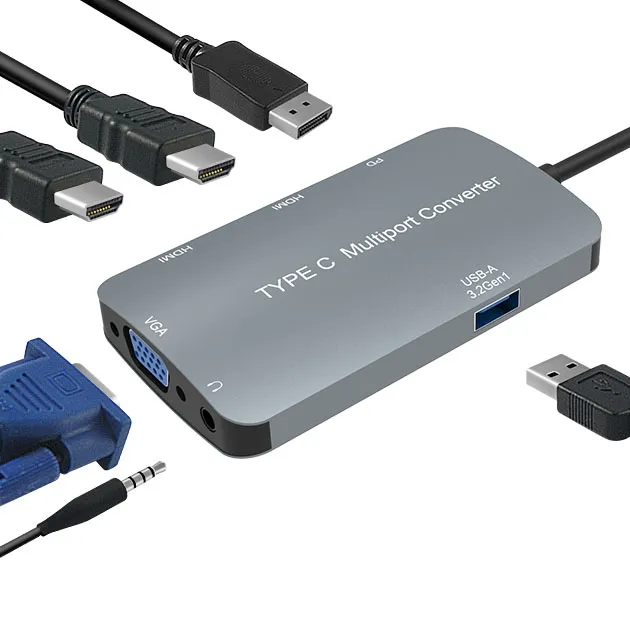

6 in 1 Type C Multiport Converter
1 / 4
  • 6 in 1 Type C Multiport Converter
  • 6 in 1 Type C Multiport Converter
  • 6 in 1 Type C Multiport Converter
  • 6 in 1 Type C Multiport Converter
6 in 1 Type C Multiport Converter
4KTCP-604
Description:

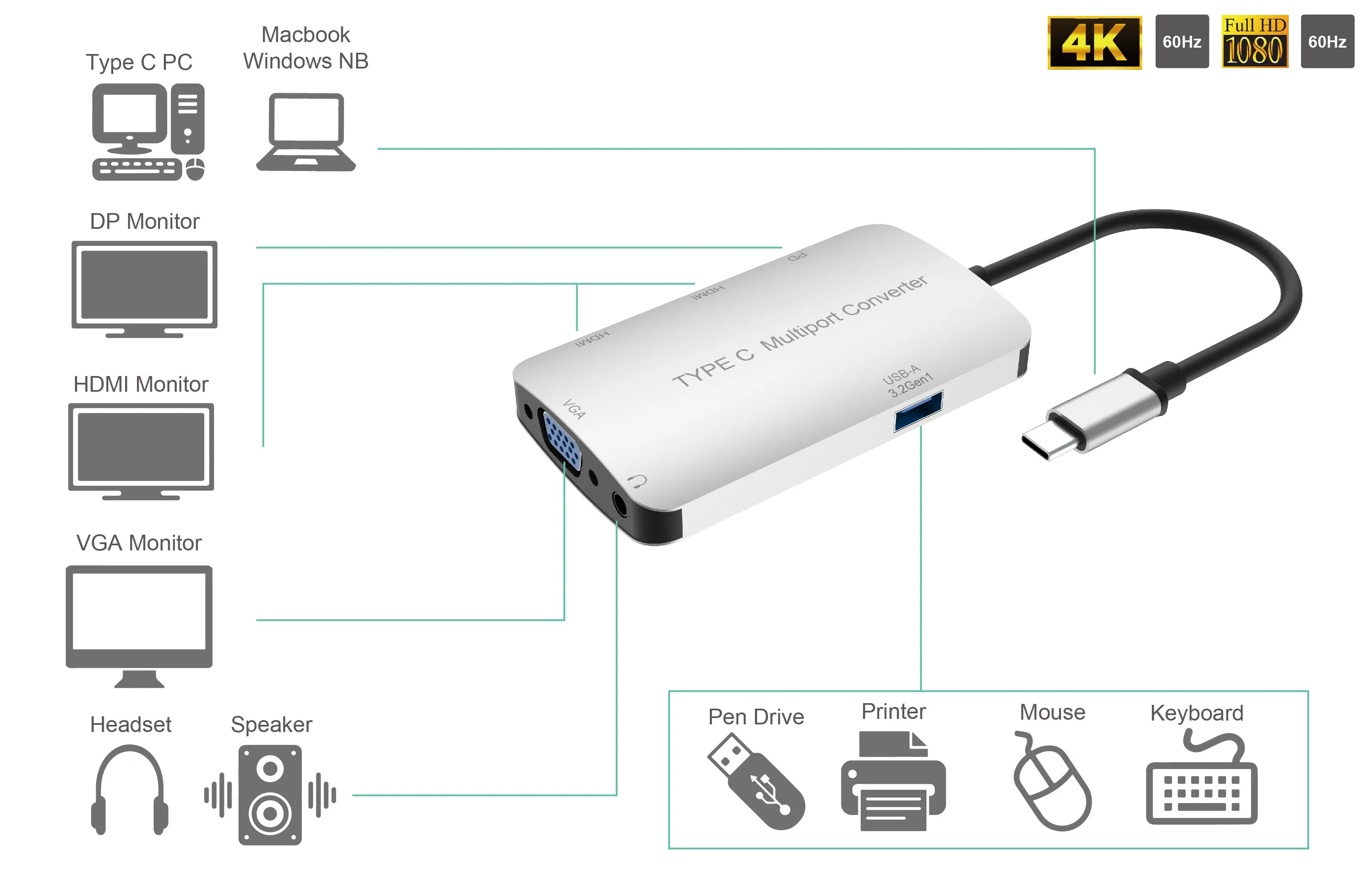

  • TYPE C to HDMIx2 + VGA + Audio + USB 3.2 + PD
  • Compliant with VESA DisplayPort Alt Mode on USB Type-C Standard V1.0 .
  • Compliant with HDMI specification version 2.0
  • Compliant with USB 3.2 Gen 1 Specification
  • Data transfer rates up to 5 Gbps
  • Supports Multi Stream Transport (MST).
  • Single Port Mode:
           - HDMI resolution up to 4K@30Hz
           - VGA resolution up to 1080P@60Hz
  • Synchronous Display Mode:
           - When only HDMI is connected the resolution is 4K@30Hz
           - When HDMI and VGA output at the same time resolution 1080P@60Hz
  • Extened Mode:
           - When only HDMI is connected the resolution is 1080P@60Hz
           - When HDMI and VGA output at the same time resolution 1080P@60Hz
  • Digital Audio Outputs sample rate up to 192kHz
  • Compliant with USB Power Delivery Specification Revision 2.0
